Ignition Coil 10 (Engine) 2 Way
Ignition Coil 10 (Engine) 2 Way

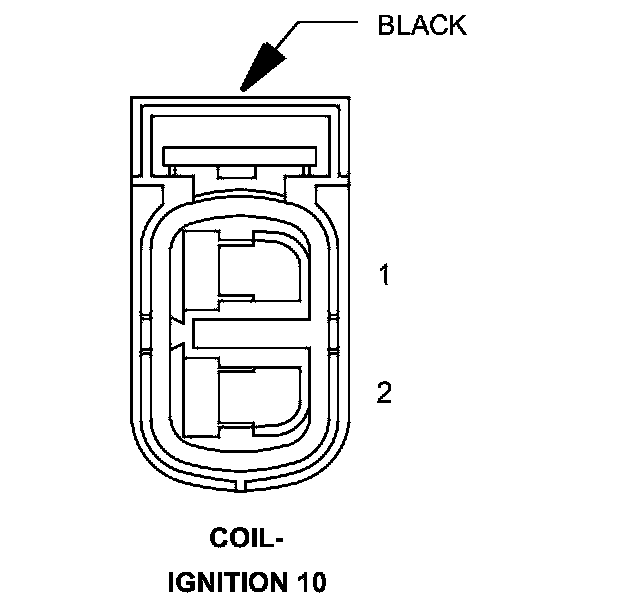

Connector - (ENGINE) 2 WAY

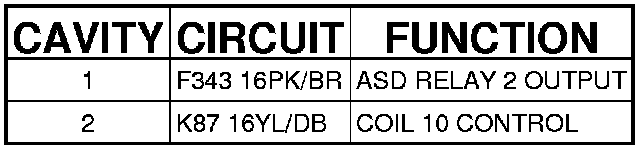

COIL-IGNITION 10 - (ENGINE) 2 WAY
