Left

INSTALLATION





1. Install left crankcase ventilation (CCV) hose (2) to cylinder head nipple (1) and position the hose clamp (3) back into proper position.

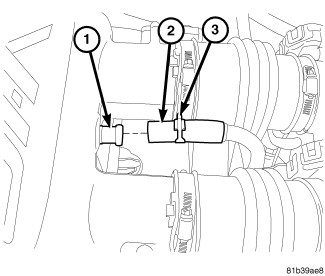

2. Install left crankcase ventilation (CCV) hose (2) to air cleaner housing nipple (1) and position the hose clamp (3) back into proper position.
