Removal

REMOVAL






NOTE: The trunk panel will have to be cut to remove the EVAP canister.

1. Disconnect and isolate negative battery cable at battery.

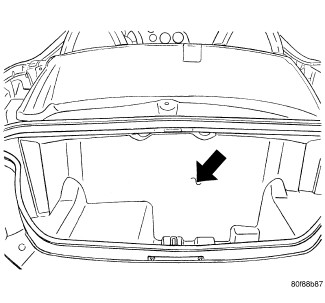

2. Put access panel in place and scribe the outline of the panel. Mark the hole for the rivet that hold the panel in place.





3. Cut closeout panel hole for fuel tank and remove panel.

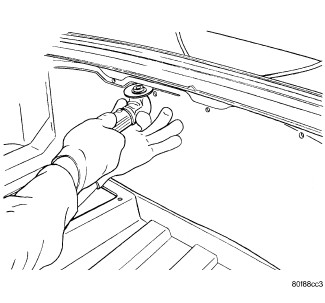

4. Drill holes (17 holes).





5. Disconnect the LDP electrical connector from pump.





6. Remove the liquid separator from the canister.
7. Disconnect lines from LDP.
8. Remove the three screws from the pump.
9. Remove the EVAP canister.
