Front

INSTALLATION

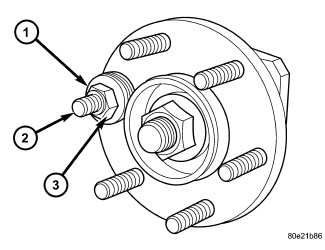

1. Install the replacement wheel mounting stud through rear of hub/bearing flange. Install a stack of washers (1) approximately 1/2 inch (13 mm) thick on the stud (2), then install a standard type wheel mounting nut (3) with its flat side toward the washers.
2. Tighten the wheel mounting nut, pulling the wheel stud into the flange of the hub/bearing. Once the head of the stud is fully seated against the rear of the flange, remove the nut and washers from the stud.

3. Install the hub and bearing assembly on the vehicle. Front Hub and Bearing - Installation
