Air Outlet - Installation

INSTALLATION

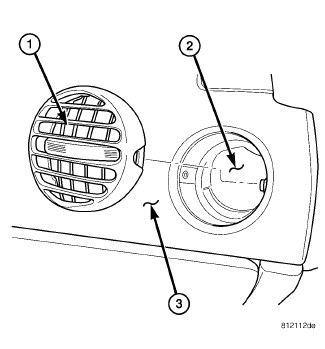

1. Position the air outlet barrel(s) (1) into the air outlet(s) (2) in the instrument panel (3).
2. Gently push the barrel into the air outlet until it snaps into position on the outlet pivot shafts.
