Throttle Body 2 (Engine) 6 Way
Throttle Body 2 (Engine) 6 Way

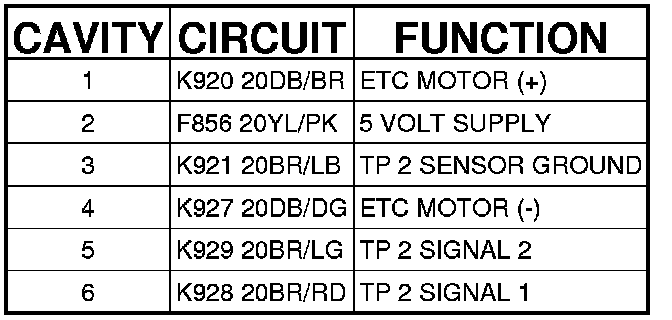

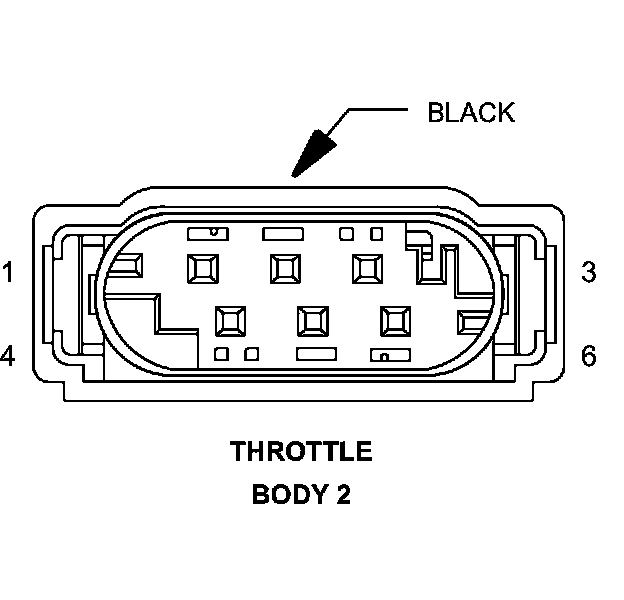

Connector - (ENGINE) 6 WAY
THROTTLE BODY
2 - (ENGINE) 6 WAY
