Throttle Body 1 (Engine) 6 Way
Throttle Body 1 (Engine) 6 Way

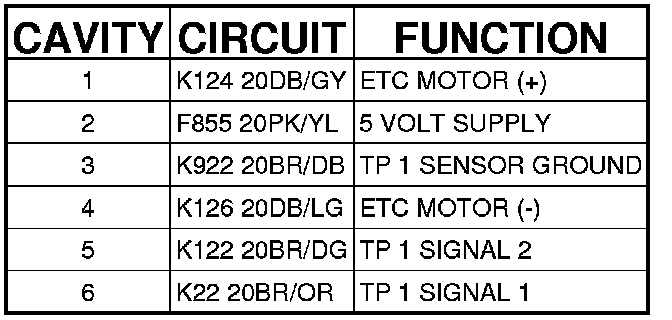

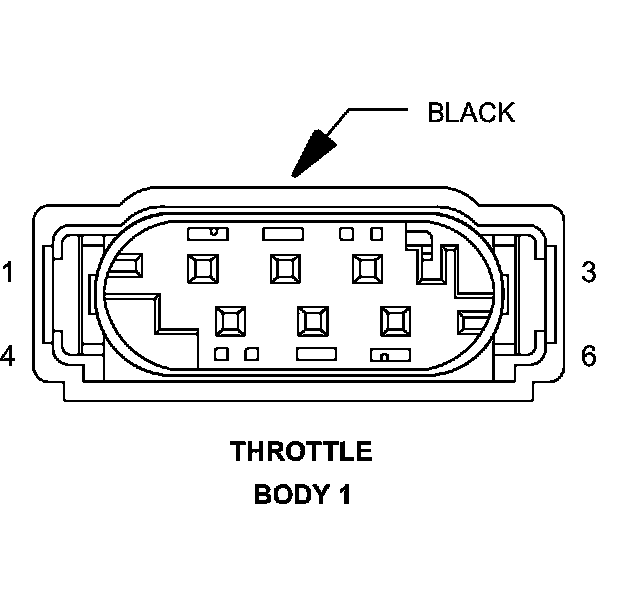

Connector - (ENGINE) 6 WAY
THROTTLE BODY
1 - (ENGINE) 6 WAY
