Satellite Receiver C1 (Body) 12 Way
Satellite Receiver C1 (Body) 12 Way

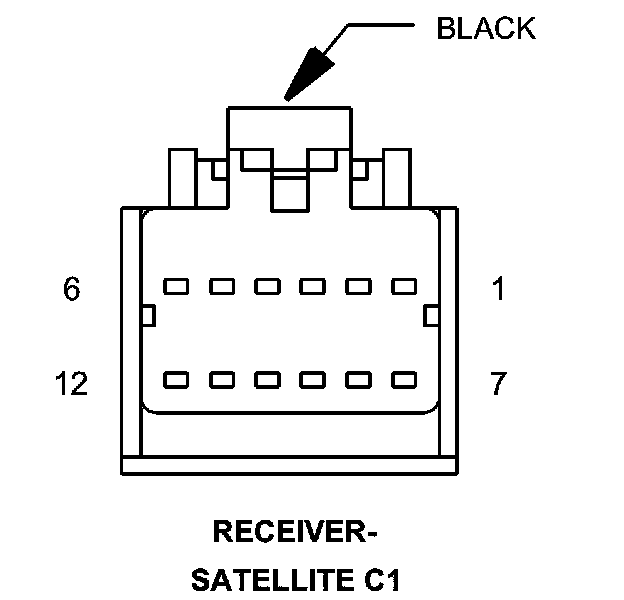

Connector C1 - (BODY) 12 WAY

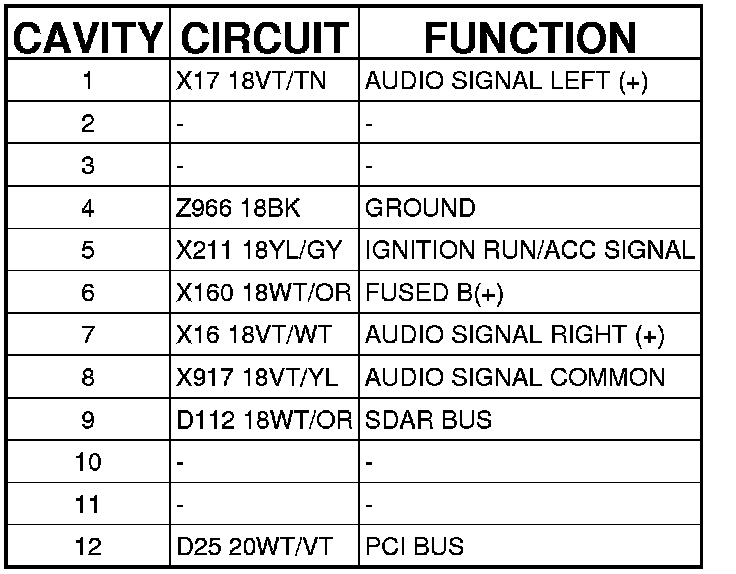

RECEIVER-SATELLITE - (BODY) 12 WAY
