Home
>>
Dodge
>>
2009
>>
Viper SRT-10 V10-8.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
Passenger Window Motor (Passenger Door) 6 Way
Passenger Window Motor (Passenger Door) 6 Way

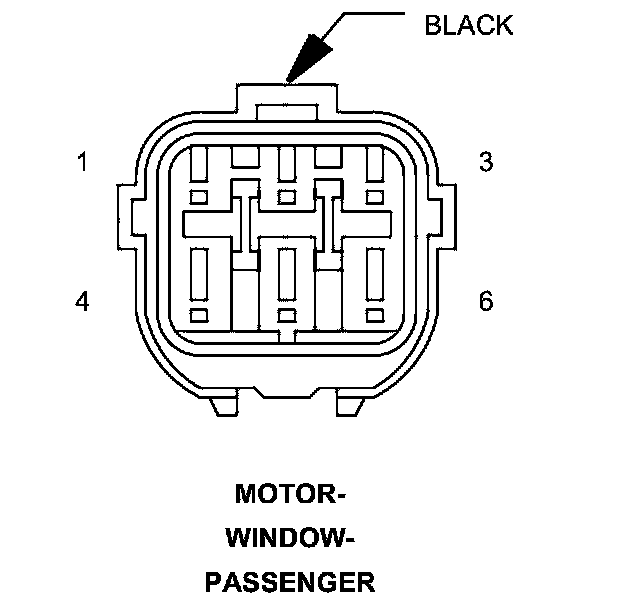

Connector - (PASSENGER DOOR) 6 WAY

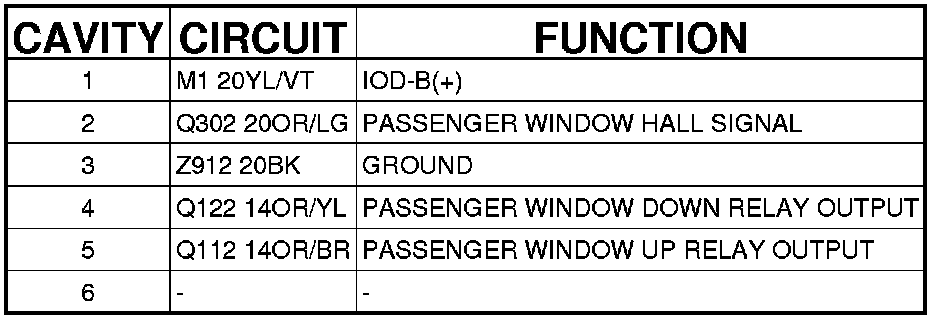

MOTOR-WINDOW-PASSENGER - (PASSENGER DOOR) 6 WAY
