Power Window Motor
>>
Driver Window Motor (Driver Door) 6 Way
Driver Window Motor (Driver Door) 6 Way

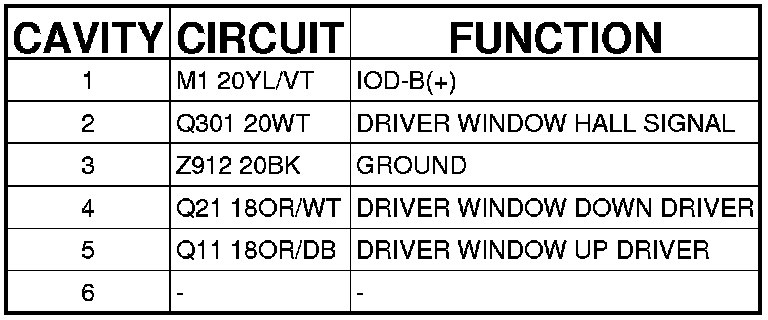

Connector - (DRIVER DOOR) 6 WAY

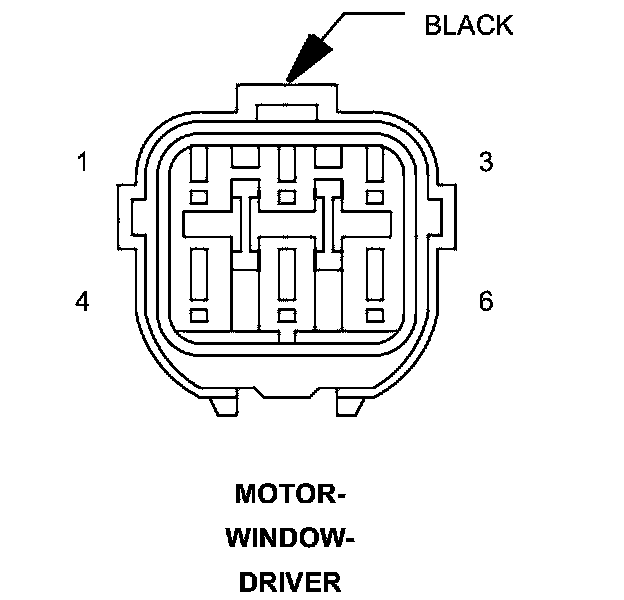

MOTOR-WINDOW-DRIVER - (DRIVER DOOR) 6 WAY
