Viper SRT-10 V10-8.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

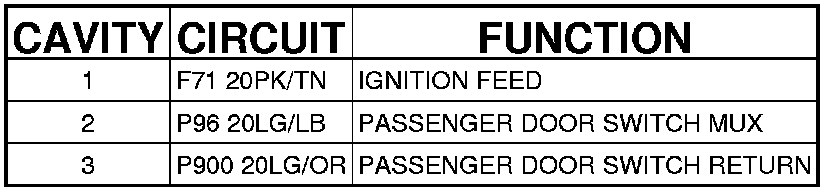

Passenger Door Lock Switch (Passenger Door) 3 Way
Passenger Door Lock Switch (Passenger Door) 3 Way

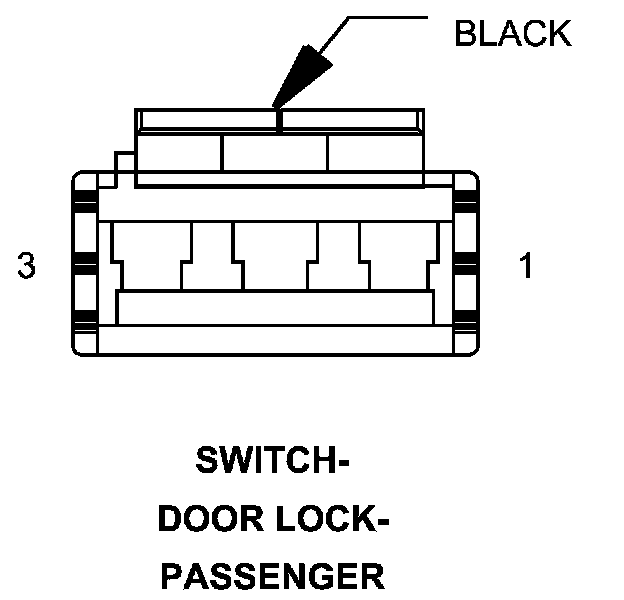

Connector - (PASSENGER DOOR) 3 WAY
SWITCH-DOOR LOCK-PASSENGER - (PASSENGER DOOR) 3 WAY
