Inside Rearview Mirror (Interior Mirror Jumper) 7 Way

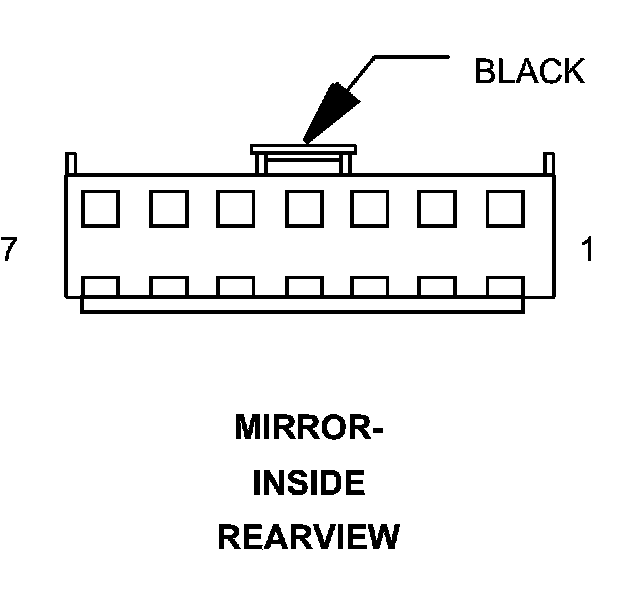

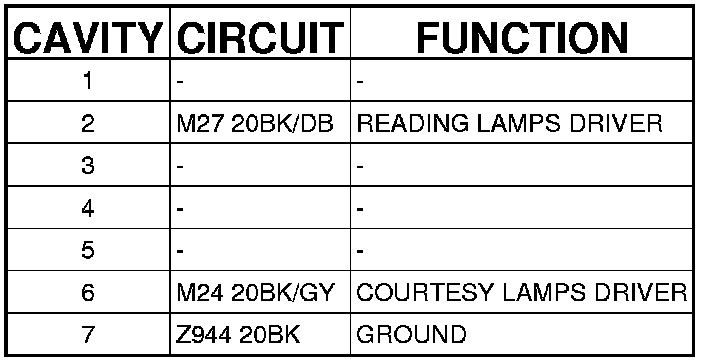

Connector - (INTERIOR MIRROR JUMPER) 7 WAY




MIRROR-INSIDE REARVIEW - (INTERIOR MIRROR JUMPER) 7 WAY
