Mirrors
>>
System Diagram
>>
Driver Outside Rearview Mirror (Driver Door) 3 Way
Driver Outside Rearview Mirror (Driver Door) 3 Way

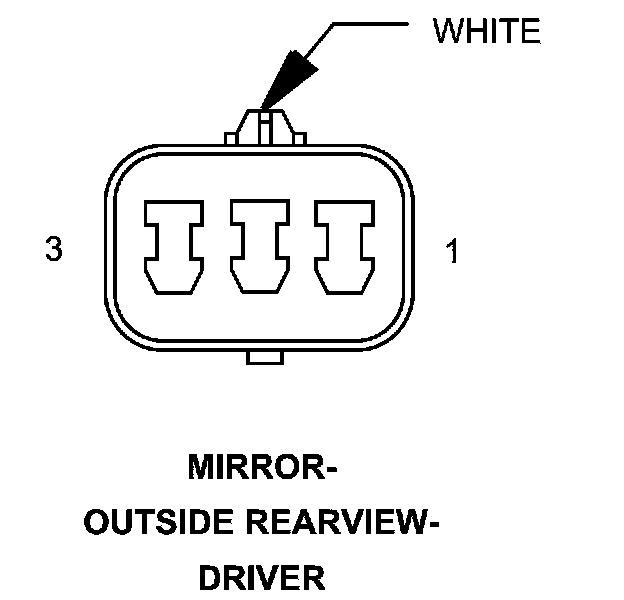

Connector - (DRIVER DOOR) 3 WAY

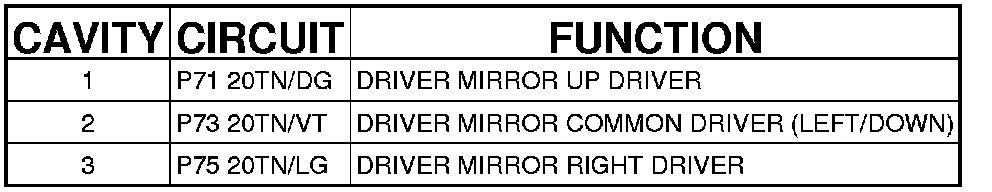

MIRROR-OUTSIDE REARVIEW-DRIVER - (DRIVER DOOR) 3 WAY
