Dodge
>>
2009
>>
Viper SRT-10 V10-8.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
License Plate Lamp
>>

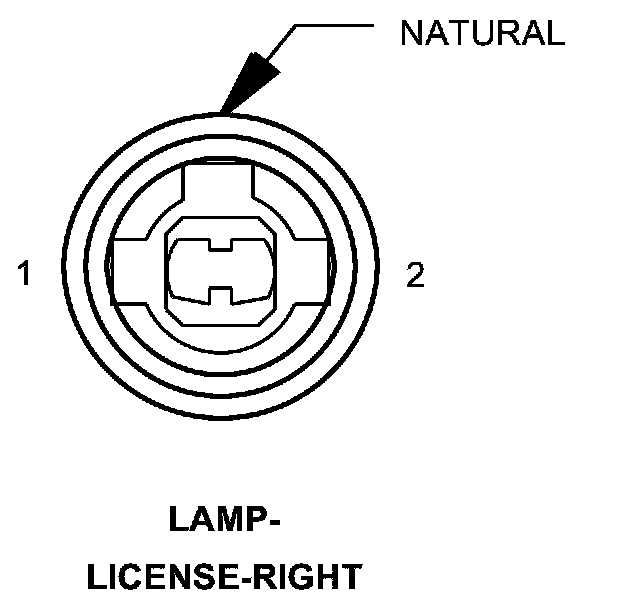

Right License Plate Lamp (Decklid/Liftgate) 2 Way
Right License Plate Lamp (Decklid/Liftgate) 2 Way

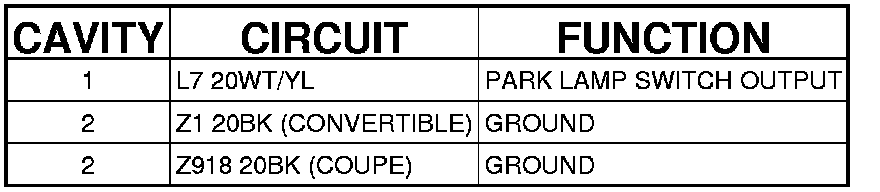

Connector - (DECKLID/LIFTGATE) 2 WAY
LAMP-LICENSE-RIGHT - (DECKLID/LIFTGATE) 2 WAY
