License Plate Lamp
>>
Left License Plate Lamp (Decklid/Liftgate) 2 Way

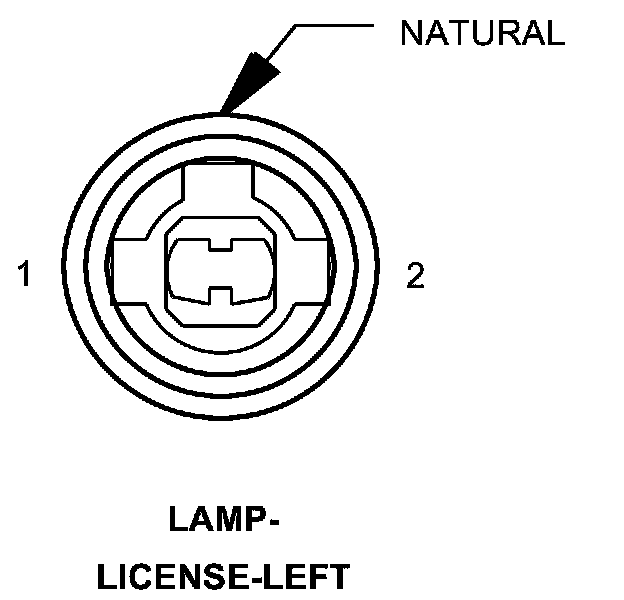

Left License Plate Lamp (Decklid/Liftgate) 2 Way

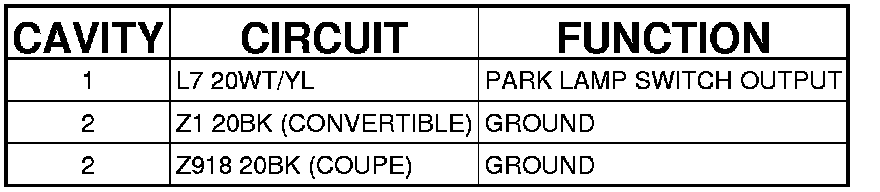

Connector - (DECKLID/LIFTGATE) 2 WAY
LAMP-LICENSE-LEFT - (DECKLID/LIFTGATE) 2 WAY
