Leak Detection Pump, Evaporative System
Leak Detection Pump, Evaporative System

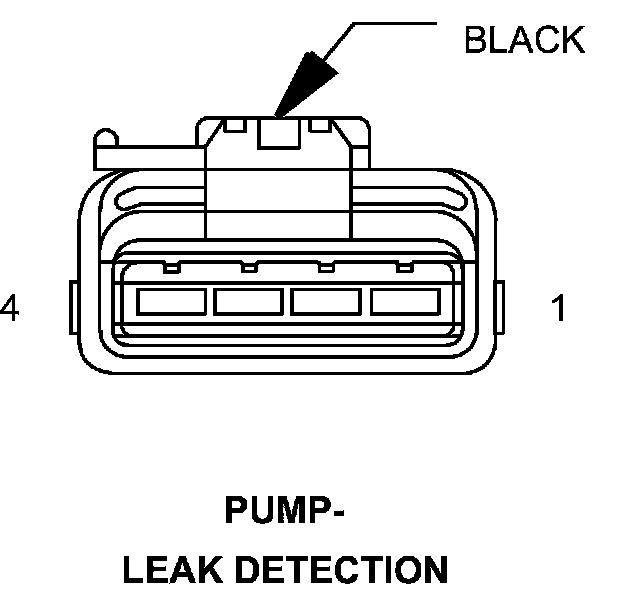

Connector - (UNDERBODY) 4 WAY

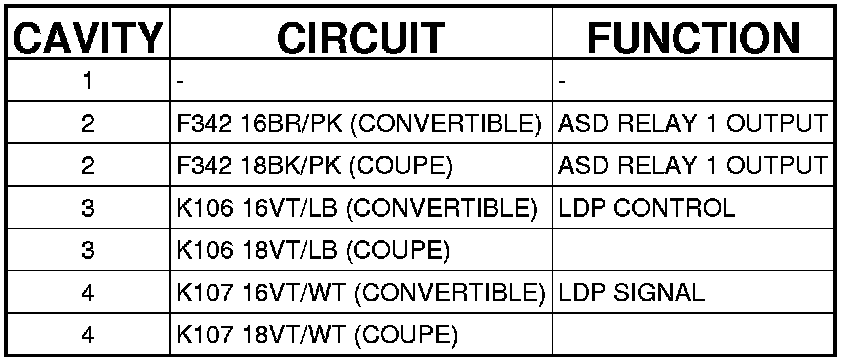

PUMP-LEAK DETECTION - (UNDERBODY) 4 WAY
