Cluster C1 (Instrument Panel) 16 Way
Cluster C1 (Instrument Panel) 16 Way

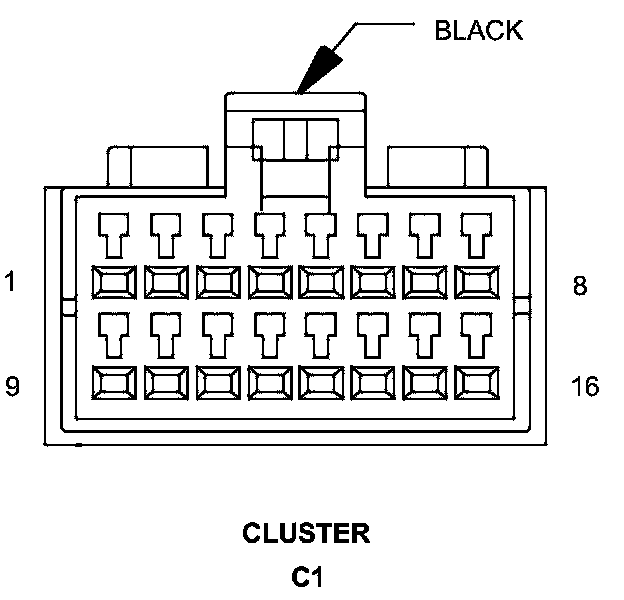

Connector C1 - (INSTRUMENT PANEL) 16 WAY

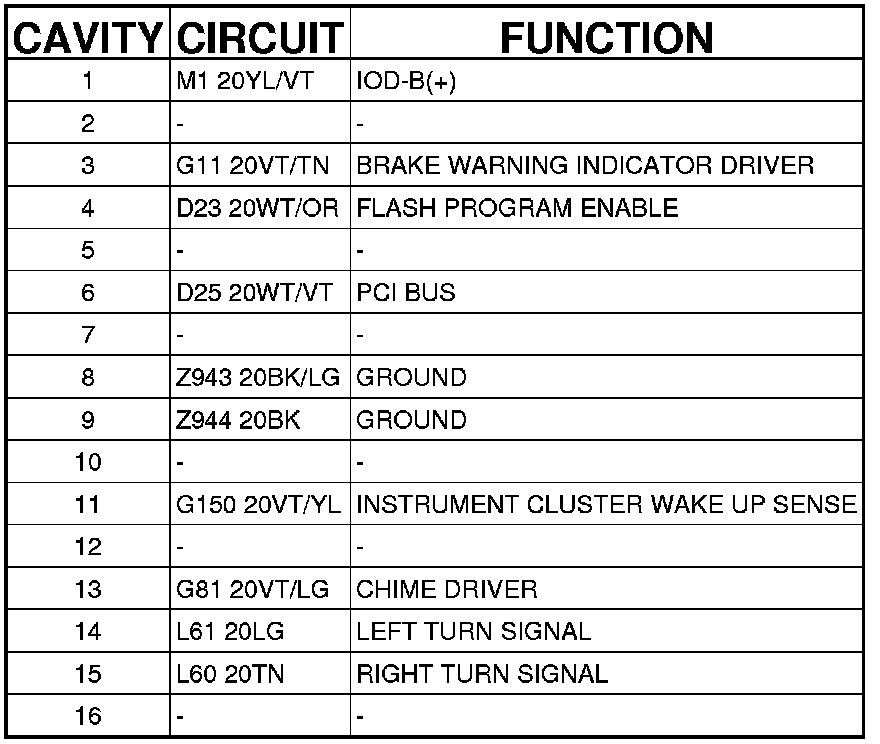

CLUSTER - (INSTRUMENT PANEL) 16 WAY
