Home >> Dodge >> 2009 >> Viper SRT-10 V10-8.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector >> Fuel Injector 9 (Engine) 2 Way

Fuel Injector 9 (Engine) 2 Way

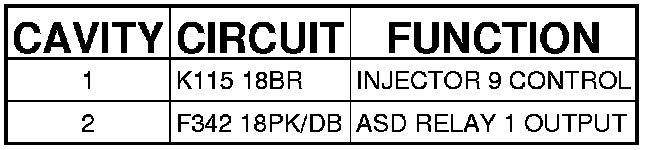

Connector - (ENGINE) 2 WAY

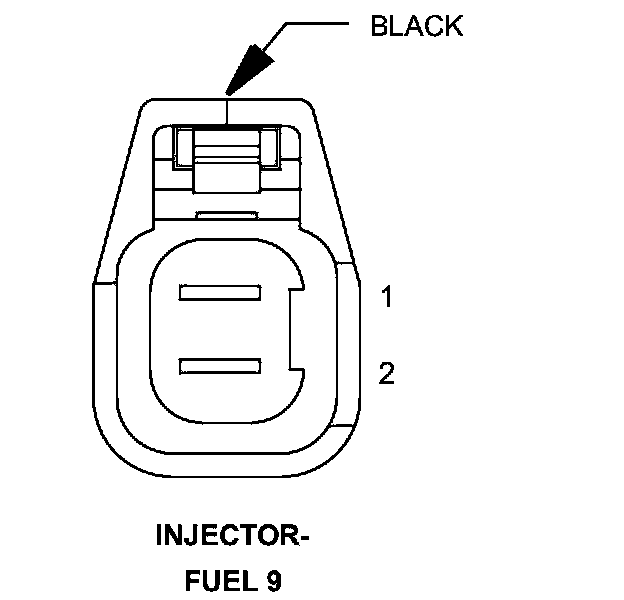

INJECTOR-FUEL 9 - (ENGINE) 2 WAY
