Left Front Fog Lamp (Headlamp And Dash) 2 Way
Left Front Fog Lamp (Headlamp And Dash) 2 Way

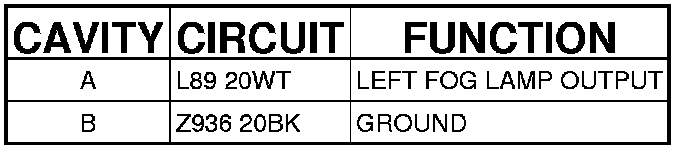

Connector - (
HEADLAMP
AND DASH) 2 WAY

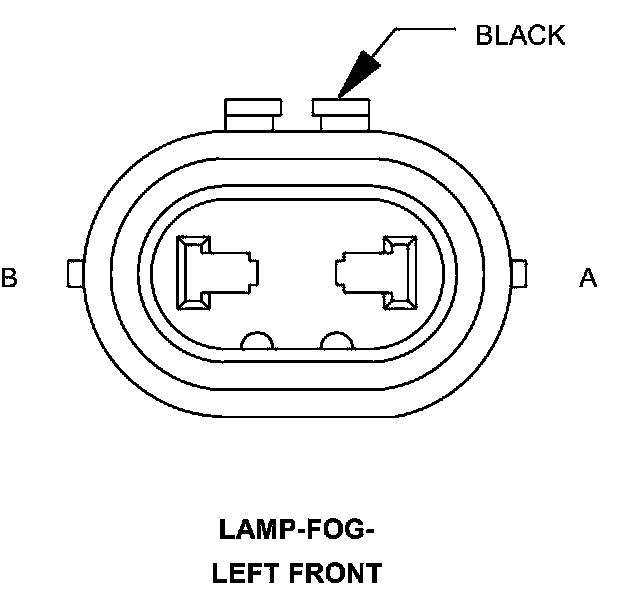

LAMP-FOG-LEFT FRONT - (
HEADLAMP
AND DASH) 2 WAY
