Home
>>
Dodge
>>
2009
>>
Viper SRT-10 V10-8.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
>>

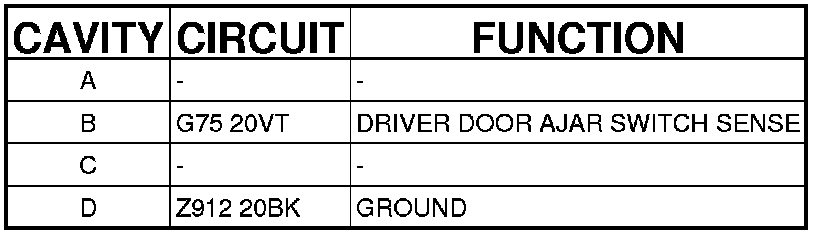

Driver Door Ajar Switch (Driver Door) 4 Way
Driver Door Ajar Switch (Driver Door) 4 Way

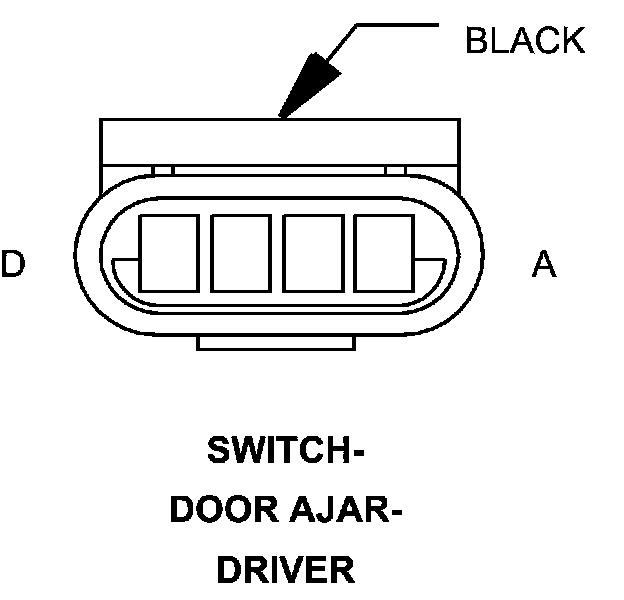

Connector - (DRIVER DOOR) 4 WAY
SWITCH-DOOR AJAR-DRIVER - (DRIVER DOOR) 4 WAY
