Door Lock Cylinder Switch
Door Lock Cylinder Switch

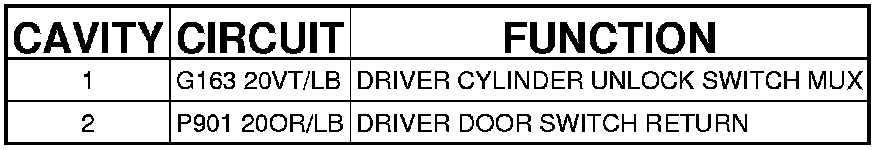

Connector - (DRIVER DOOR) 2 WAY

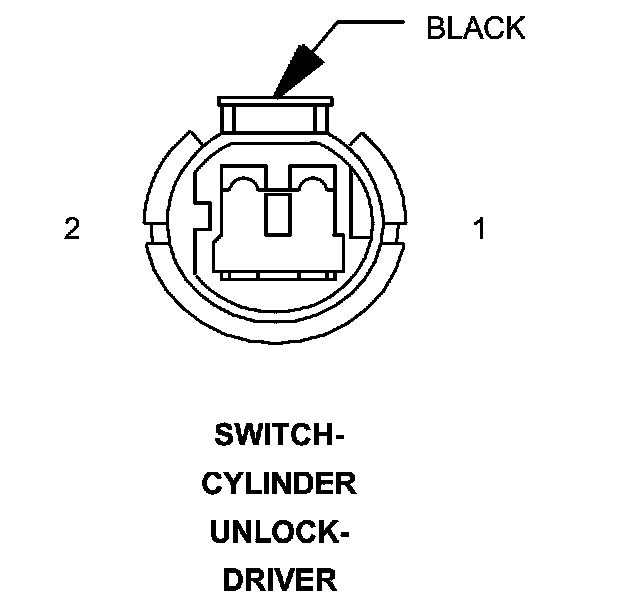

SWITCH-CYLINDER UNLOCK-DRIVER - (DRIVER DOOR) 2 WAY
