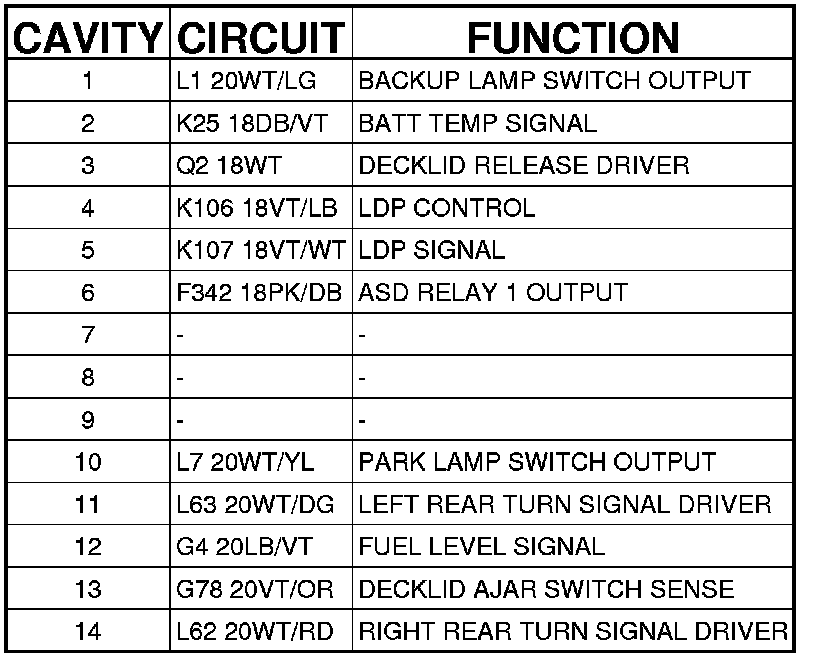

C103 (Headlamp And Dash Side) 14 Way
C103 (Headlamp And Dash Side) 14 Way
Connector - (
HEADLAMP
AND DASH SIDE) 14 WAY

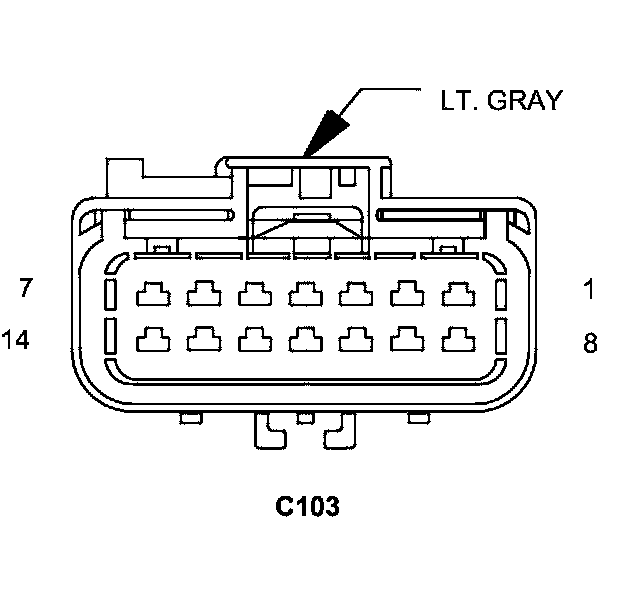

C103 - (
HEADLAMP
AND DASH SIDE) 14 WAY
