C101 (Instrument Panel Side) 30 Way
C101 (Instrument Panel Side) 30 Way

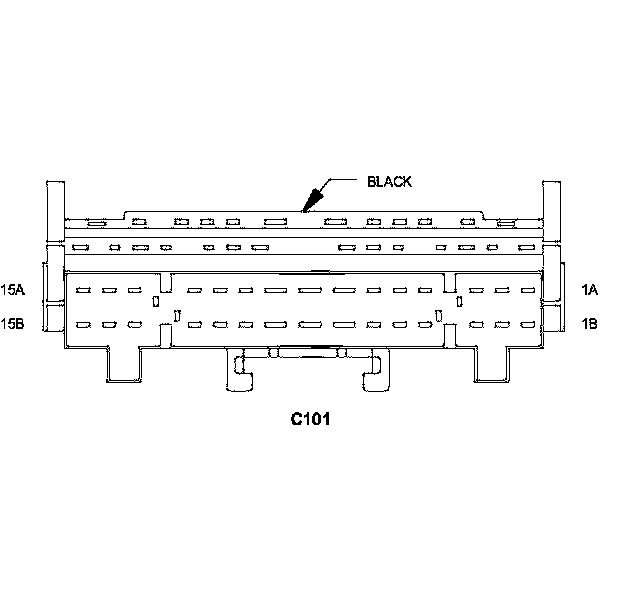

Connector - (INSTRUMENT PANEL SIDE) 30 WAY

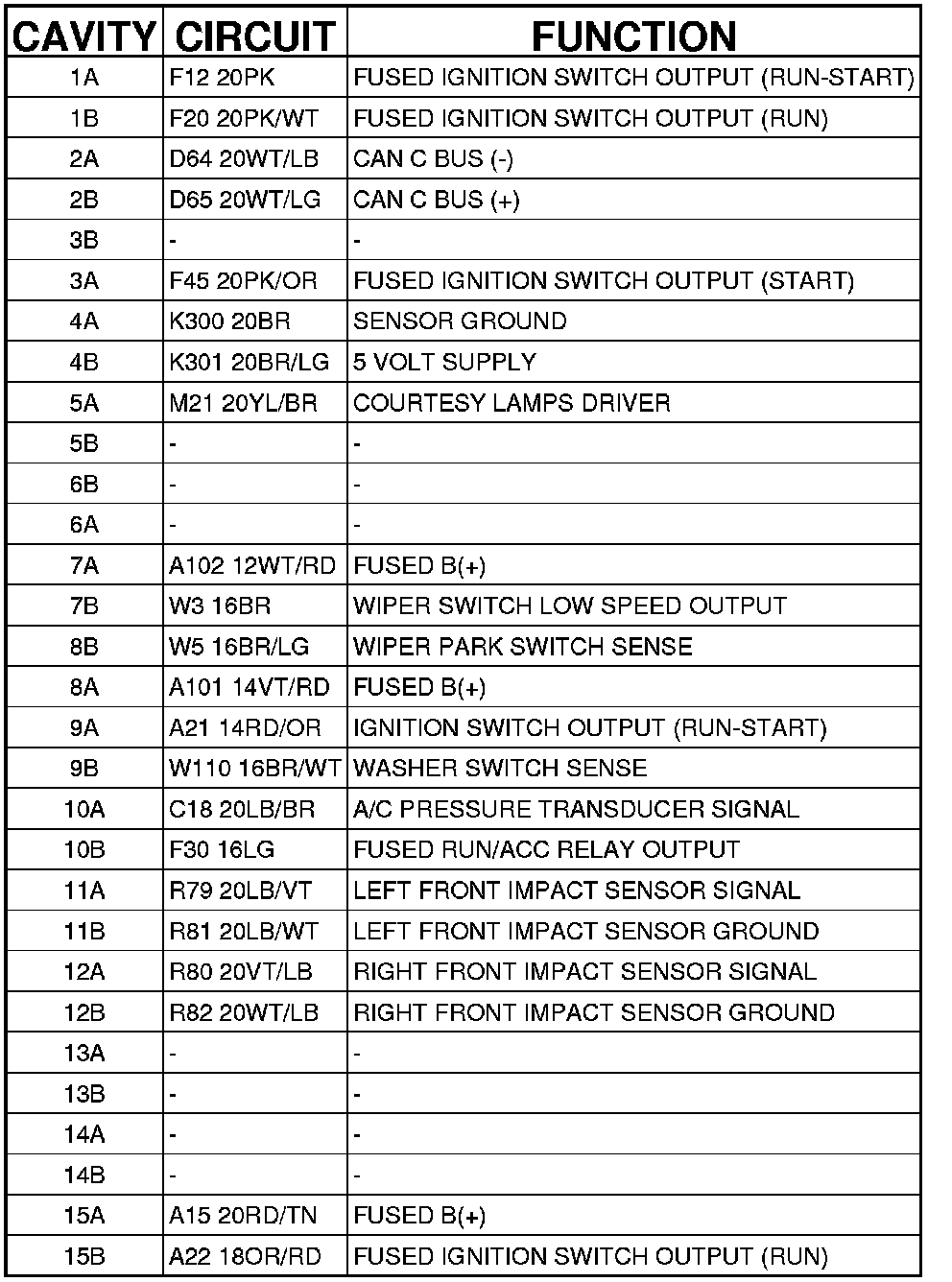

C101 - (INSTRUMENT PANEL SIDE) 30 WAY
