Amplifier, Sound System
>>
Radio Amplifier C1 (Body) 14 Way
Radio Amplifier C1 (Body) 14 Way

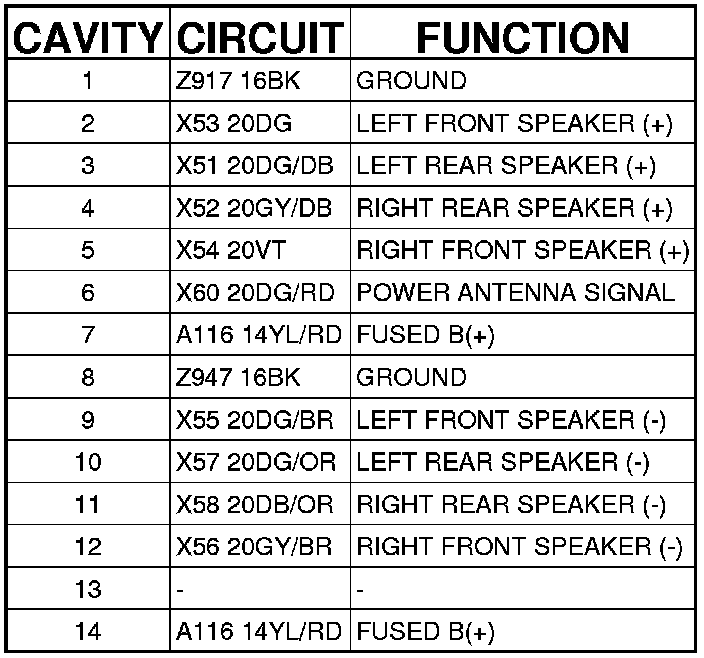

Connector C1 - (BODY) 14 WAY
AMPLIFIER
-RADIO - (BODY) 14 WAY
