Integrated Control Unit (ICU) - Disassembly

DISASSEMBLY










1. Disconnect the pump/motor wiring harness (2) from the CAB (1).

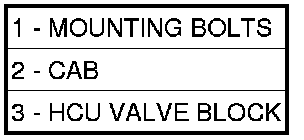

2. Remove the four bolts (1) attaching the CAB (2) to the HCU (3).
3. Remove the CAB from the HCU.

NOTE: For assembly, Integrated Control Unit (ICU) - Assembly.
