Front Door Weatherstrip - Installation

INSTALLATION

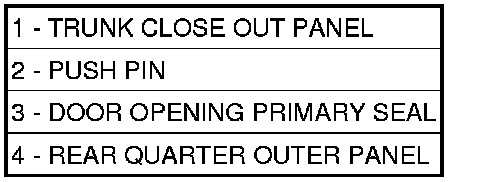

1. Position the seal to the bottom of the door opening, with bulb facing outboard, and install the rear screw and push pin fasteners.
2. Insert the tip of the seal into the a-pillar weatherstrip and insure the seat butt together tightly.
3. Press the seal onto the sill flange and work around the perimeter of the door opening until fully seated.
4. Install the door scuff plate and seat the spring clips fully.
