Sport Hoop - Installation

INSTALLATION

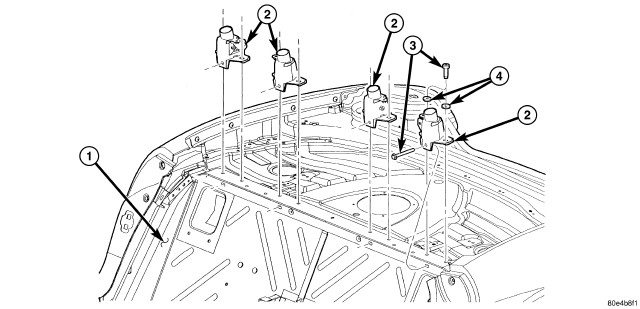

Sport Hoop Mounting Brackets





1. Install the bracket and install the fasteners.
2. Tighten the bolts to 39 Nm (29 ft. lbs.).
3. Install the bulkhead quarter trim panels. Bulkhead Trim Panel - Installation

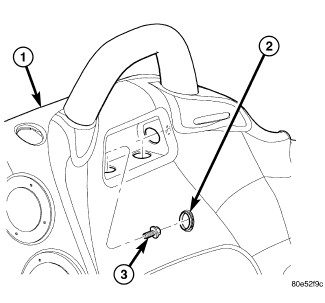

Sport Hoop





1. Install the sport hoop and install the bolts.
2. Tighten the bolts to 28 Nm (21 ft. lbs.).
3. Install the sport hoop fastener cover.
