Sport Bar - Removal

REMOVAL





1. Remove bulkhead trim support.Bulkhead Trim Panel - Removal.
2. Remove headliner.Headliner - Removal
3. Remove B-pillar extension. Coupe B-Pillar Extension Trim Panel-Removal
4. Remove liftgate.Liftgate - Removal

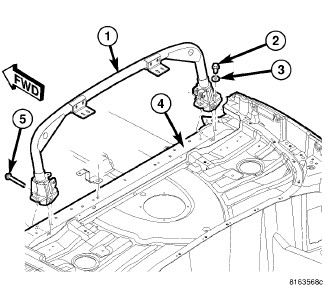

5. Remove sport bar assembly bolt (5) from frame (4).
6. Remove fasteners (2) and washers from sport bar frame (4).
7. Remove sport bar assembly from vehicle.
