Latch Striker - Installation

INSTALLATION

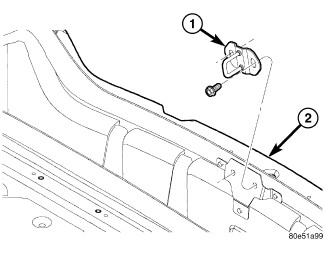

1. Position striker (1) to vehicle.
2. Install bolts attaching decklid latch striker to trunk tail panel and tighten to 12 Nm (9 ft. lbs.).
3. Verify decklid operation and alignment and adjust if necessary.
