Cowl Panel Cover - Installation

INSTALLATION

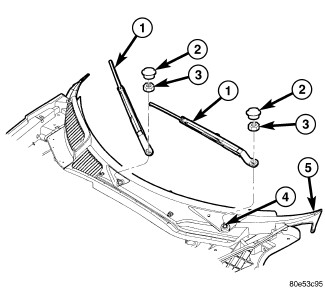

1. Install the cowl screen panels and install the screws.





2. Install the wiper blades and install the retaining nuts.
3. Tighten the nuts to 28 Nm (21 ft. lbs.).
4. Install the wiper arm caps.
