Speaker
>>
Subwoofer Speaker (Dodge Premium) (Body) 4 Way
Subwoofer Speaker (Dodge Premium) (Body) 4 Way

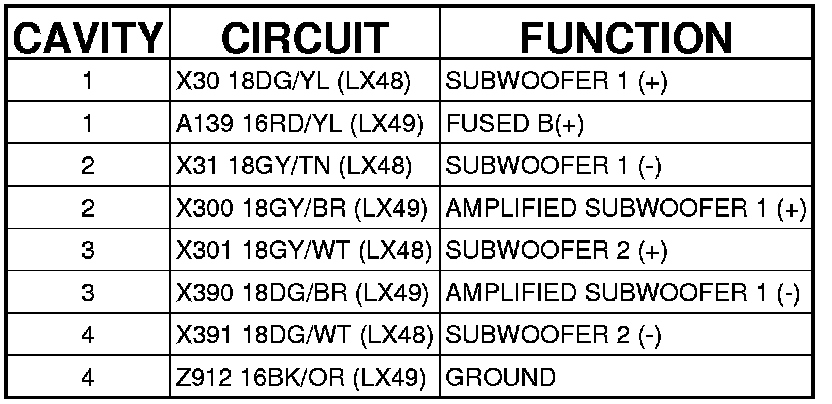

Connector (DODGE PREMIUM) - (BODY) 4 WAY

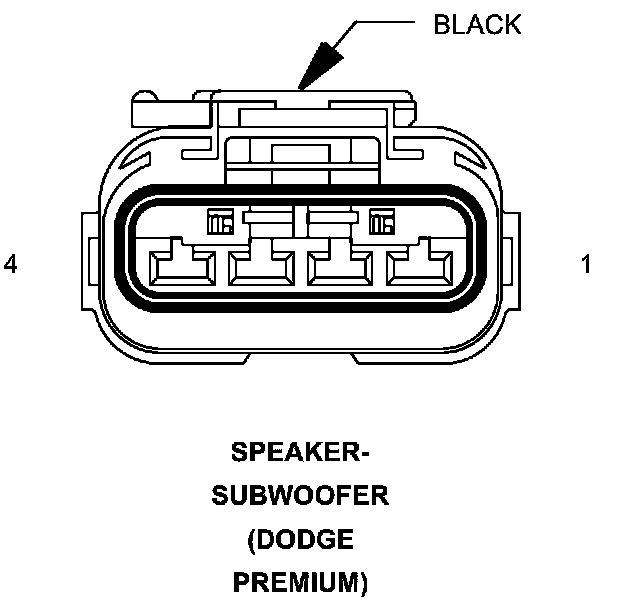

SPEAKER-SUBWOOFER (DODGE PREMIUM) - (BODY) 4 WAY
