Home >> Dodge >> 2009 >> Charger V8-5.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Police / Special Vehicle Options >> Police/Taxi Interface Connector (Instrument Panel) 24 Way

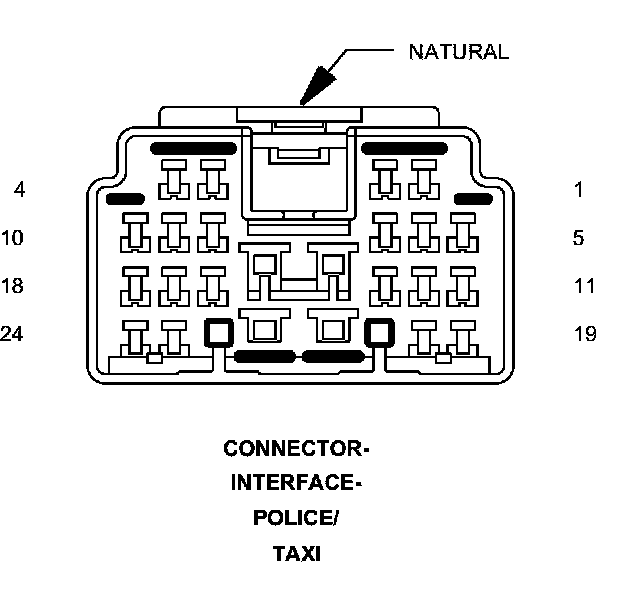

Police/Taxi Interface Connector (Instrument Panel) 24 Way






Connector - (INSTRUMENT PANEL) 24 WAY

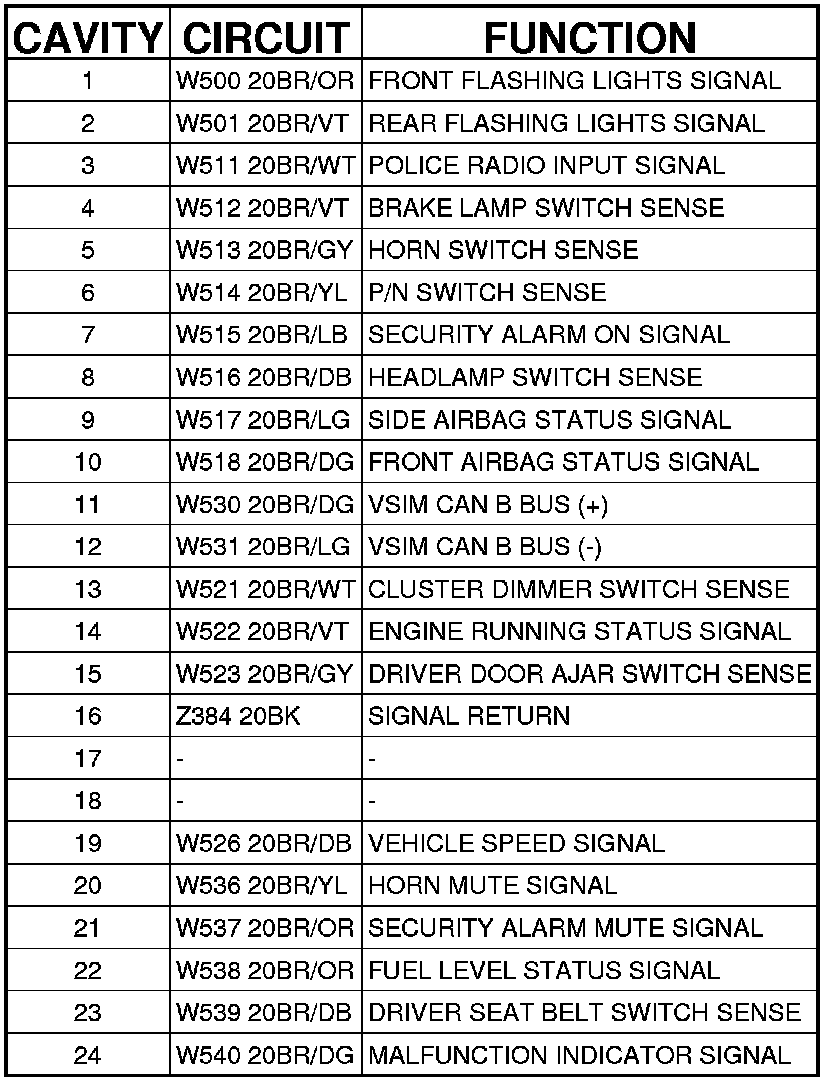

CONNECTOR-INTERFACE-POLICE/TAXI - (INSTRUMENT PANEL) 24 WAY
