C101 (MDS/VCT Jumper Side) 6 Way
C101 (MDS/VCT Jumper Side) 6 Way

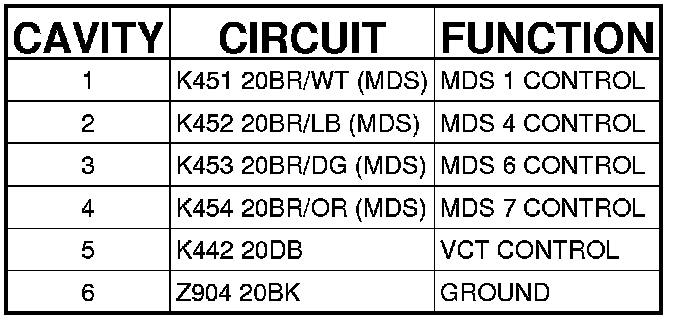

Connector (5.7L) - (MDS/VCT JUMPER SIDE) 6 WAY
C101 (5.7L) - (MDS/VCT JUMPER SIDE) 6 WAY
