Air Outlet Barrels

AIR OUTLET BARRELS - DODGE

NOTE: The instrument panel air outlet barrels are retained to the pivots within the air outlets by a snap fit.






NOTE: LHD model shown. RHD model similar.

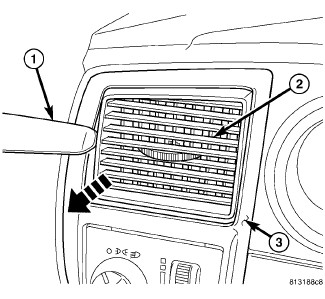

1. Using Trim Stick C-4755 (1) or equivalent, gently pry the air outlet barrel(s) (2) out of the instrument panel air outlet(s) (3) as required.
