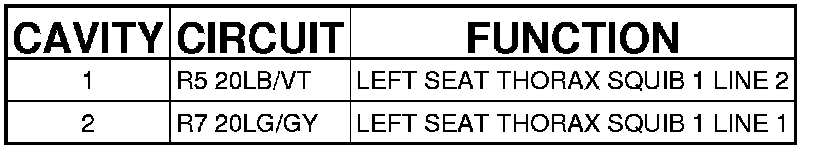

Left Side Thorax Airbag (Front Seat) 2 Way
Left Side Thorax Airbag (Front Seat) 2 Way

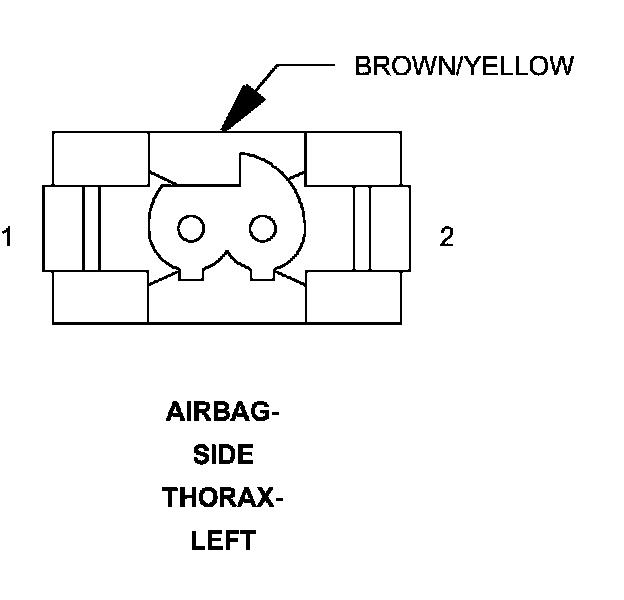

Connector - (FRONT SEAT) 2 WAY
AIRBAG-SIDE THORAX-LEFT - (FRONT SEAT) 2 WAY
