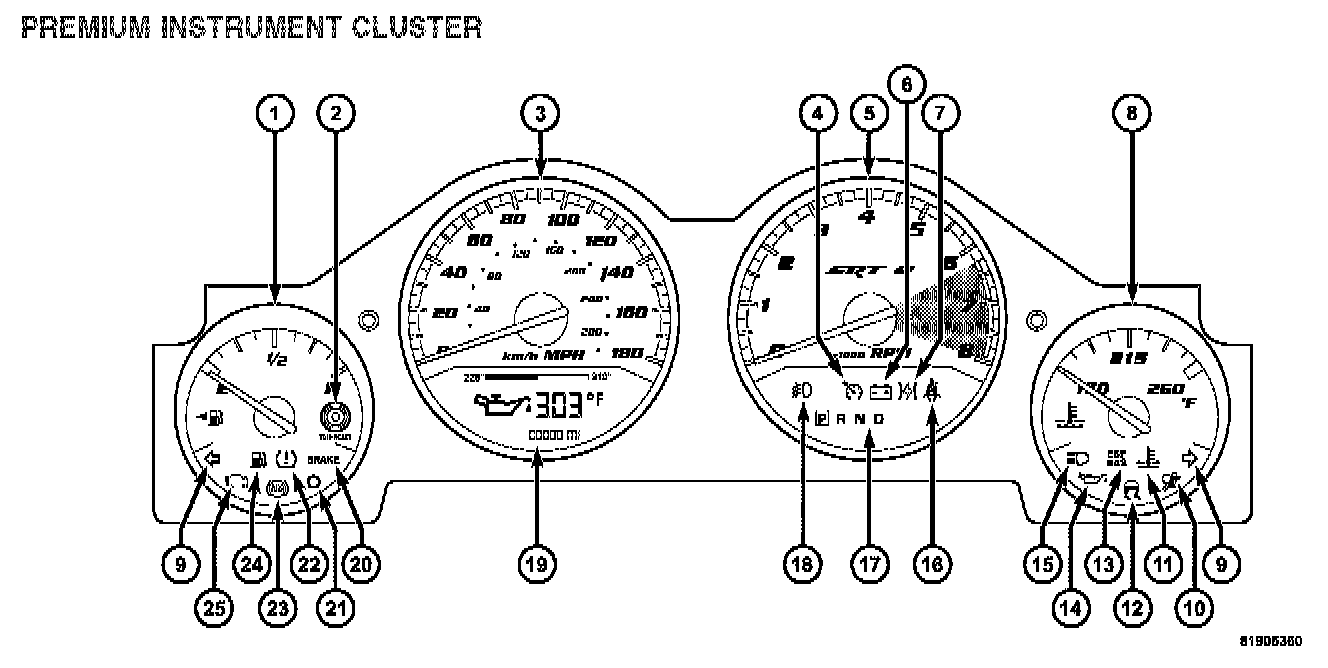

Indicator Lamp Identification

1. Fuel Gauge
2. Trip Odometer Button
3. Speedometer
4. Electronic Speed Control Indicator Light
5. Tachometer
6. Charging System Light
7. Electronic Throttle Control (ETC) Light
8. Temperature Gauge
9. Turn Signal Indicators
10. Airbag Warning Light
11. Engine Temperature Warning light
12. Electronic Stability Program (ESP)/ Traction Control System (TCS) Indicator Light
13. Electronic Stability Program (ESP)/ Brake Assist System (BAS) Malfunction Indicator Light
14. Oil Pressure Warning Light
15. High Beam Light
16. Seat belt Reminder Light
17. Shift Lever Indicator
18. Front Fog Light Indicator - If Equipped
19. Electronic Vehicle Information Center (EVIC) Display
20. Brake System Warning Light
21. Vehicle Security Light - If Equipped
22. Tire Pressure Monitor Telltale Light
23. Anti-Lock Brake (ABS) Light
24. Low Fuel Indicator Light
25. Malfunction Indicator Light (MIL)
