Pilot Bearing - Installation

INSTALLATION

1. Clean bearing bore with solvent and wipe dry with shop towel.

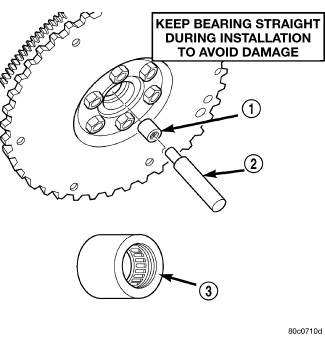

2. Install new bearing (1) with clutch alignment tool (2). Keep bearing straight during installation. Do not allow bearing to become cocked. Tap bearing into place until flush with edge of bearing bore. Do not recess bearing.

NOTE: Letter side of bearing (3) must face transmission.

3. Install clutch cover and disc Clutch Disc - Installation.
4. Install clutch housing and transmission TR6060 Manual Transmission - Installation.
