Removal

REMOVAL

NOTE: The clutch release bearing and slave cylinder are serviced as an assembly.





1. Raise and support the vehicle.

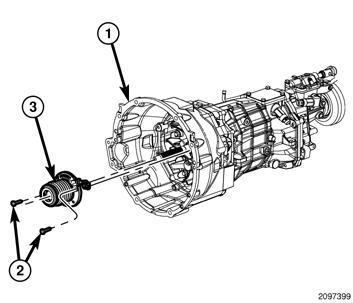

2. Remove the transmission (1) and place it on a workbench TR6060 Manual Transmission - Removal.
3. Remove the two bolts (2) that secure the release bearing/slave cylinder (3) to the transmission and remove the release bearing/slave cylinder.
