Shifter A/T: Diagrams

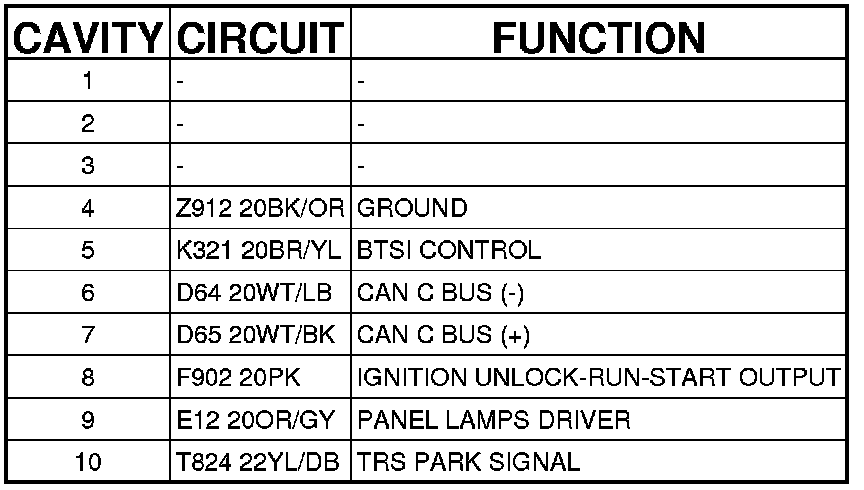

Connector (NAG1) - (BODY) 10 WAY

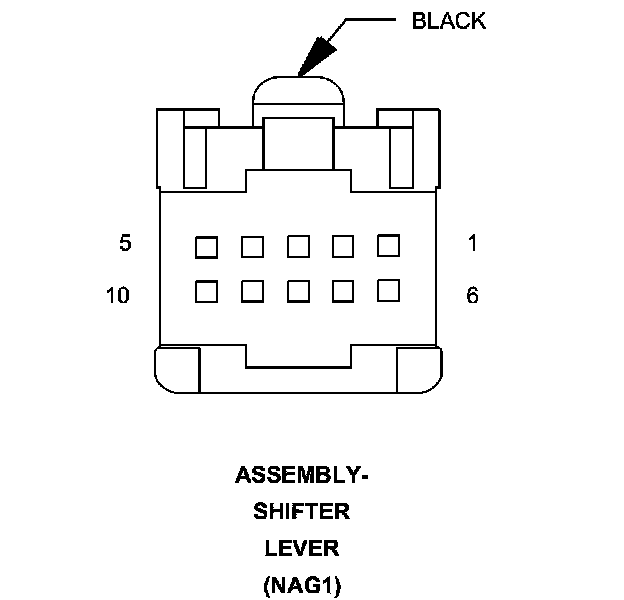

ASSEMBLY-SHIFTER LEVER (NAG1) - (BODY) 10 WAY
