Side Curtain Air Bag - Installation

INSTALLATION

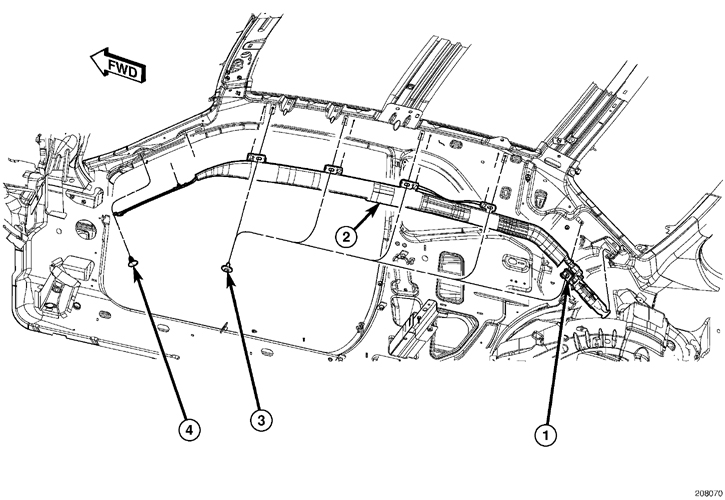

1. Position the curtain airbag (2) in vehicle along the roof side rail and secure with pushpins (4).





2. Install the bolt (2) securing the inflator to the C/D-pillar. Tighten bolt to 11 Nm (8 ft. lbs.).





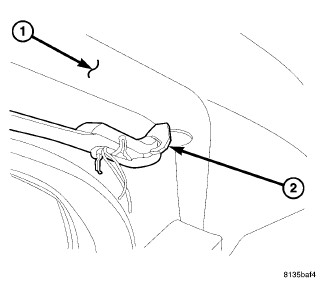

3. Clip the front tether (2) to the A-pillar (1) and install a new push pin (4).





4. Install the screws (3) that securing the curtain airbag (2) to the spring nuts in the roof side rail. Tighten screws to 5 Nm (44 in. lbs.).

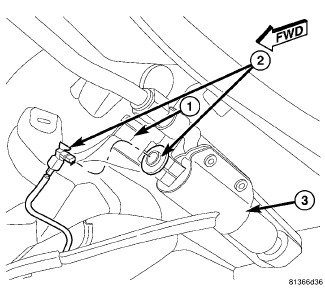

5. Connect the curtain airbag squib electrical connector (2) to the inflator (3).
6. Install the headliner into the vehicle. Headliner - Installation.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE. PERSONAL INJURY OR DEATH MAY RESULT IF THE SYSTEM TEST IS NOT PERFORMED FIRST. FOR THE SYSTEM TEST, Supplemental Restraints Verification Test
