Front

REMOVAL





1. Disconnect the negative battery cable (2).

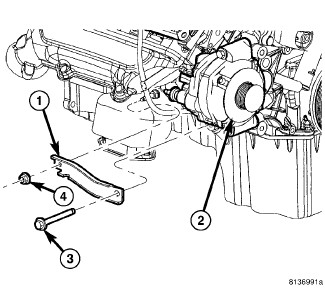

2. Remove the generator support bracket (1).

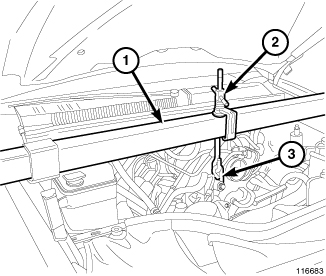

3. Support the engine using the engine support fixture (1) 8534B.
4. Raise and support the vehicle.





5. Remove the engine mount nuts (1,2).
6. Lower the vehicle.





7. Using the engine support fixture (1) 8534B raise the engine far enough to be able to remove the left and right engine mounts.





8. Remove the engine mount heat shield (1).





9. Remove the hydramount (3) retaining bolts (1,2) and remove the hydramount from the engine.





10. If necessary, remove the engine mount brackets (1).
