Turn Signal Lamp
>>
Right Tail Lamp Assembly C1 (Right Tail Lamp) 3 Way
Right Tail Lamp Assembly C1 (Right Tail Lamp) 3 Way

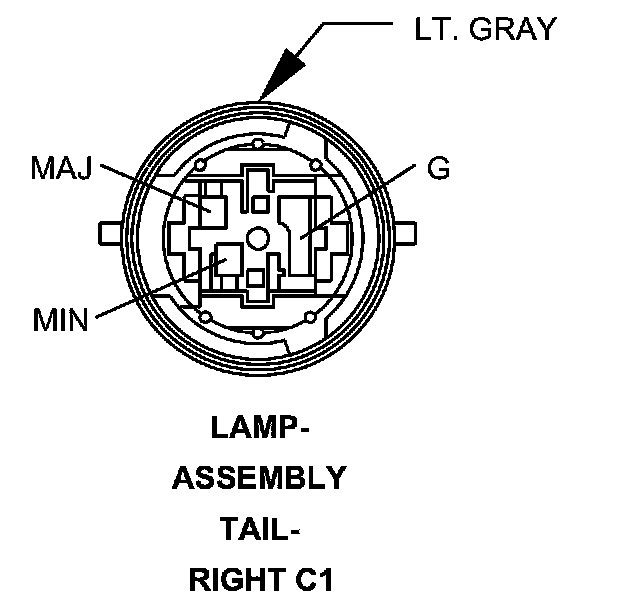

Connector C1 - (RIGHT
TAIL LAMP
) 3 WAY

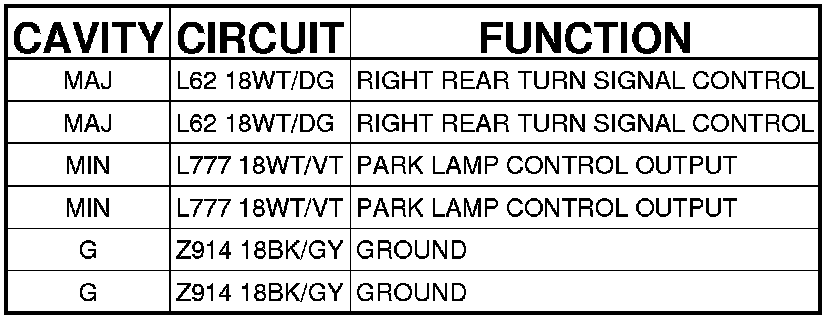

LAMP-ASSEMBLY TAIL-RIGHT - (RIGHT
TAIL LAMP
) 3 WAY
