Dodge
>>
2009
>>
Challenger V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starter Relay
Starter Relay

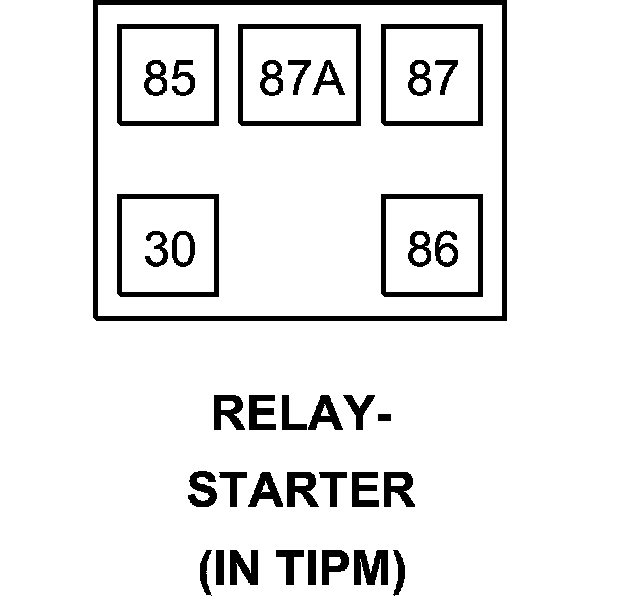

Connector - (IN TIPM) 5 WAY

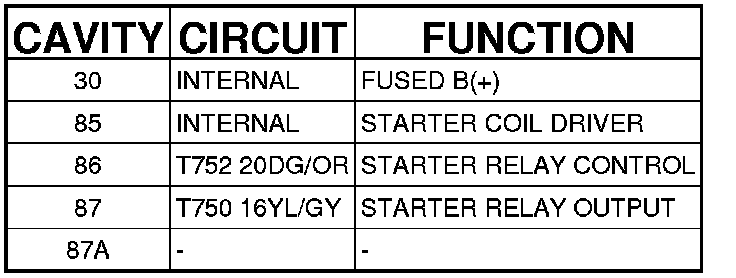

RELAY-STARTER - (IN TIPM) 5 WAY
