Home
>>
Dodge
>>
2009
>>
Challenger V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Center Instrument Panel Speaker (Instrument Panel) 2 Way
Center Instrument Panel Speaker (Instrument Panel) 2 Way

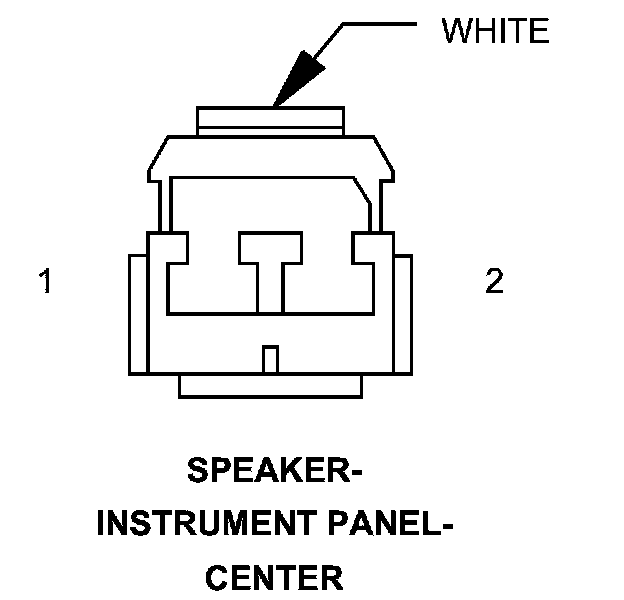

Connector - (INSTRUMENT PANEL) 2 WAY

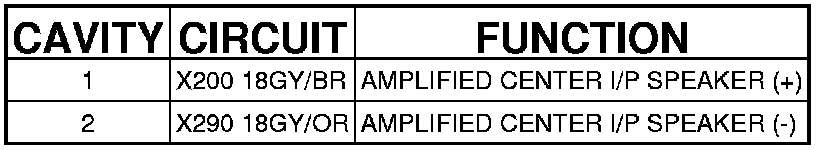

SPEAKER-INSTRUMENT PANEL-CENTER - (INSTRUMENT PANEL) 2 WAY
