Seat Belt Buckle Switch
>>

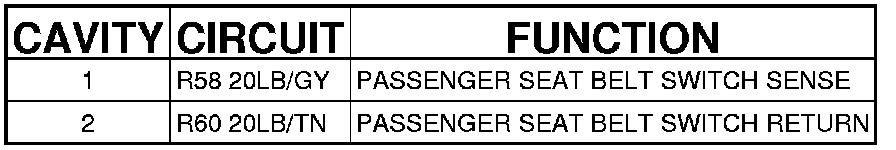

Passenger Seat Belt Switch (Front Seat) 2 Way
Passenger Seat Belt Switch (Front Seat) 2 Way

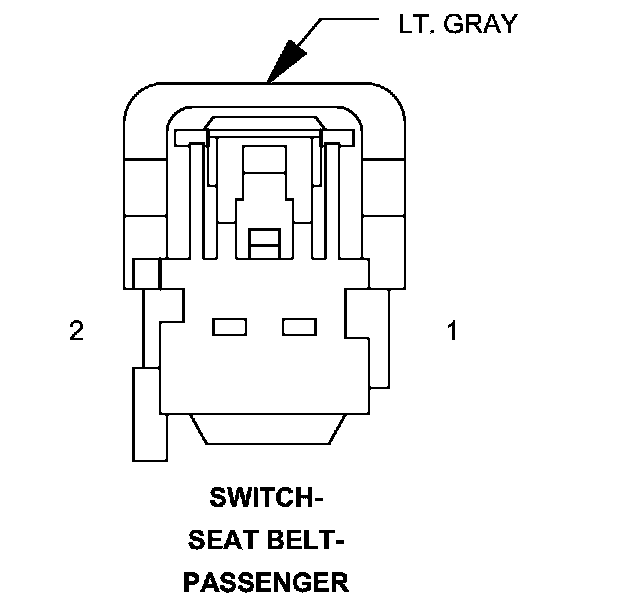

Connector - (FRONT SEAT) 2 WAY
SWITCH-SEAT BELT-PASSENGER - (FRONT SEAT) 2 WAY
