Marker Lamp
>>
Left Rear Side Marker Lamp (Rear Fascia) 2 Way
Left Rear Side Marker Lamp (Rear Fascia) 2 Way

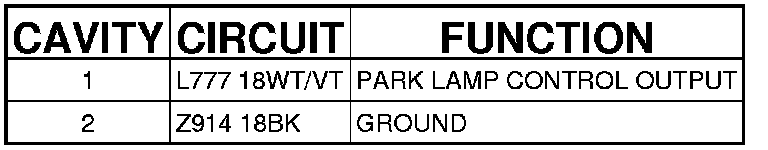

Connector - (REAR FASCIA) 2 WAY

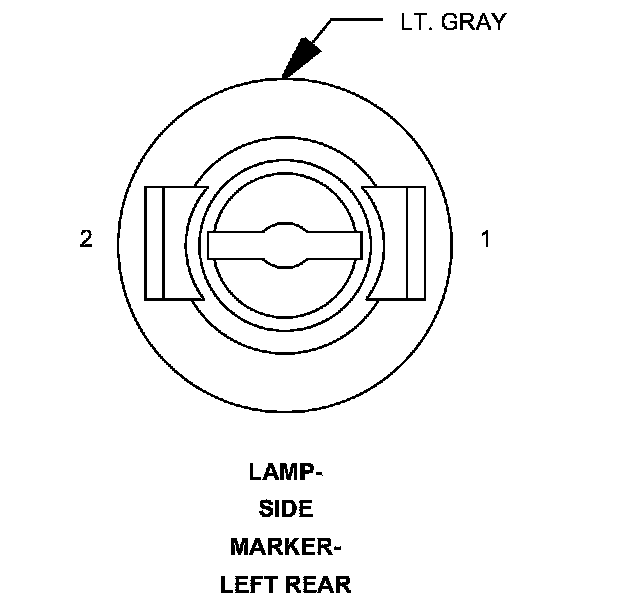

LAMP-SIDE MARKER-LEFT REAR - (REAR FASCIA) 2 WAY
