Left Rear Footwell Lamp (Front Seat Back Jumper) 2 Way

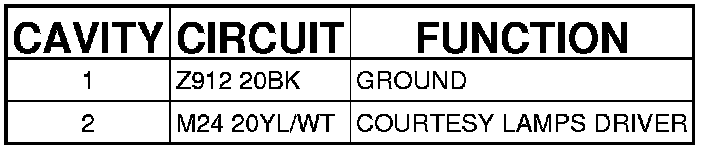

Connector - (FRONT SEAT BACK JUMPER) 2 WAY

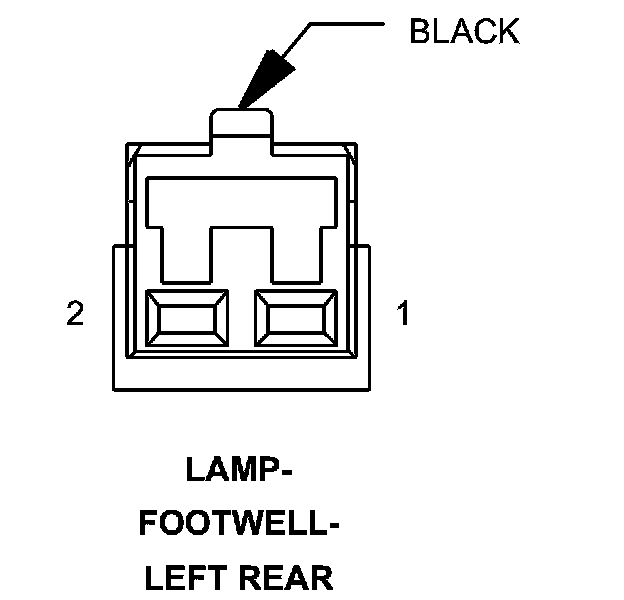

LAMP-FOOTWELL-LEFT REAR - (FRONT SEAT BACK JUMPER) 2 WAY
