Home
>>
Dodge
>>
2009
>>
Challenger V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C399
>>
C314 (Front Seat Side) 8 Way
C314 (Front Seat Side) 8 Way
Connector - (FRONT SEAT SIDE) 8 WAY

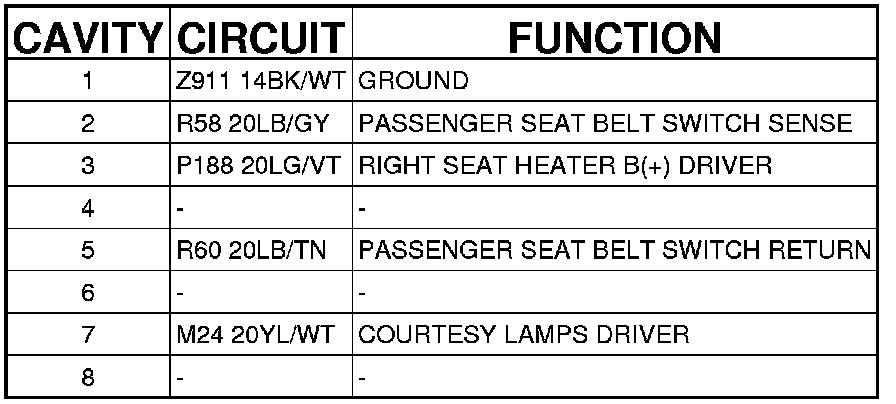

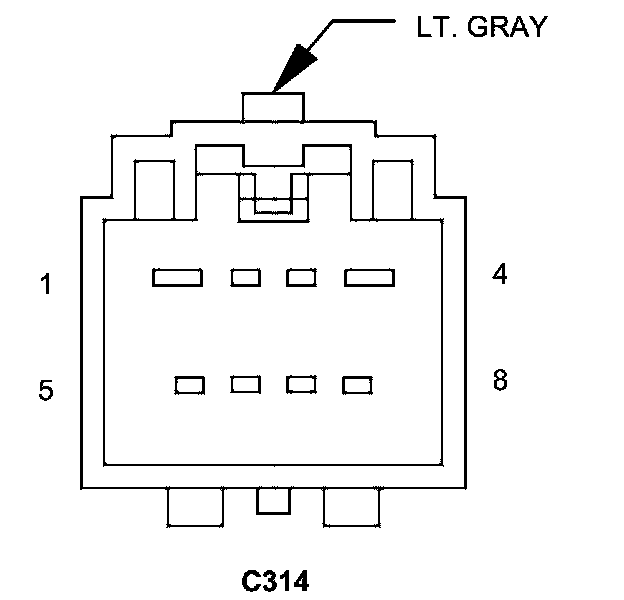

C314 - (FRONT SEAT SIDE) 8 WAY
