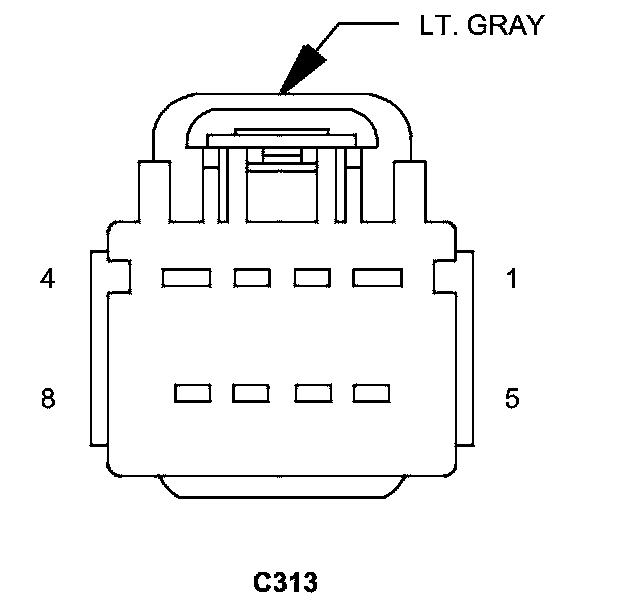

C313 (Body Side) 8 Way
C313 (Body Side) 8 Way

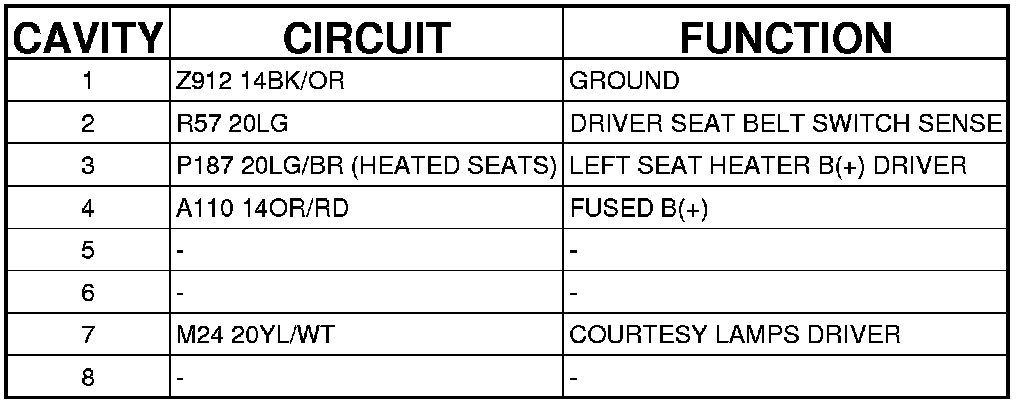

Connector - (BODY SIDE) 8 WAY
C313 - (BODY SIDE) 8 WAY
