C307 (Left Tail Lamp Side) 6 Way
C307 (Left Tail Lamp Side) 6 Way

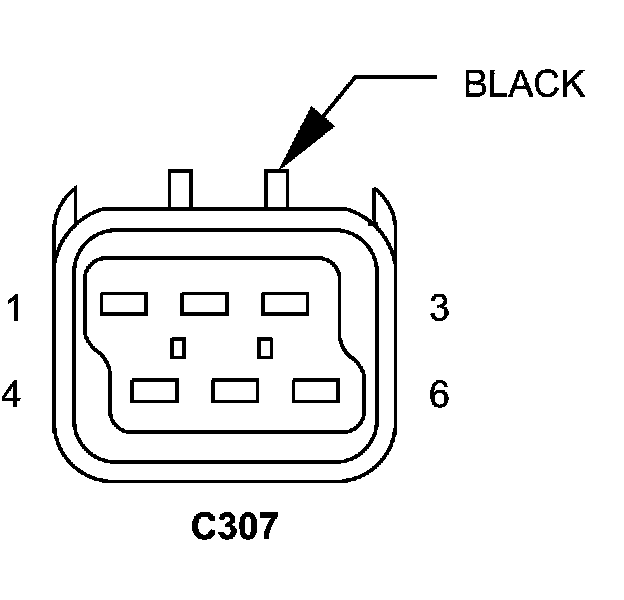

Connector - (LEFT
TAIL LAMP
SIDE) 6 WAY

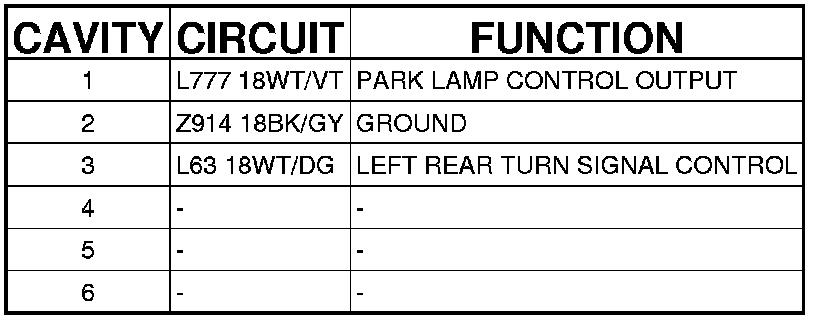

C307 - (LEFT
TAIL LAMP
SIDE) 6 WAY
